Transfer Die Stamping

Transfer die stamping

Complex multi-station stamping operations for larger components requiring deep draws, multiple forming stages, and precise dimensional control. Offers potential material savings over progressive dies.

Pax Machine Works provides transfer die stamping services up to 1,200 tons from our facility in Celina, Ohio. We design, build, and maintain all transfer dies in-house for complex multi-station forming operations.

Process in action

Every component we produce reflects decades of tooling expertise and relentless attention to dimensional precision.

Overview

Transfer die stamping

Transfer die stamping moves individual blanks between separate die stations within the press. This process is ideal for larger parts requiring deep draws, multiple forming stages, and operations on all sides of the part. Our transfer capability handles components up to 1,200 tons with complex geometries.

Key capabilities

Individual blanks transferred between die stations for complex forming
Deep draws and multi-stage forming operations
Larger part sizes than progressive stamping sometimes allows for material savings
Operations on all sides of the part in a single press cycle
Presses up to 1,200 tons for heavy-gauge and large-format parts
In-house transfer die design, build, and maintenance
Ideal for structural components, housings, and enclosures
Full quality documentation and dimensional inspection

Built on decades of tooling expertise

Our in-house tool & die capabilities mean faster response, tighter control, and production-ready quality from day one.

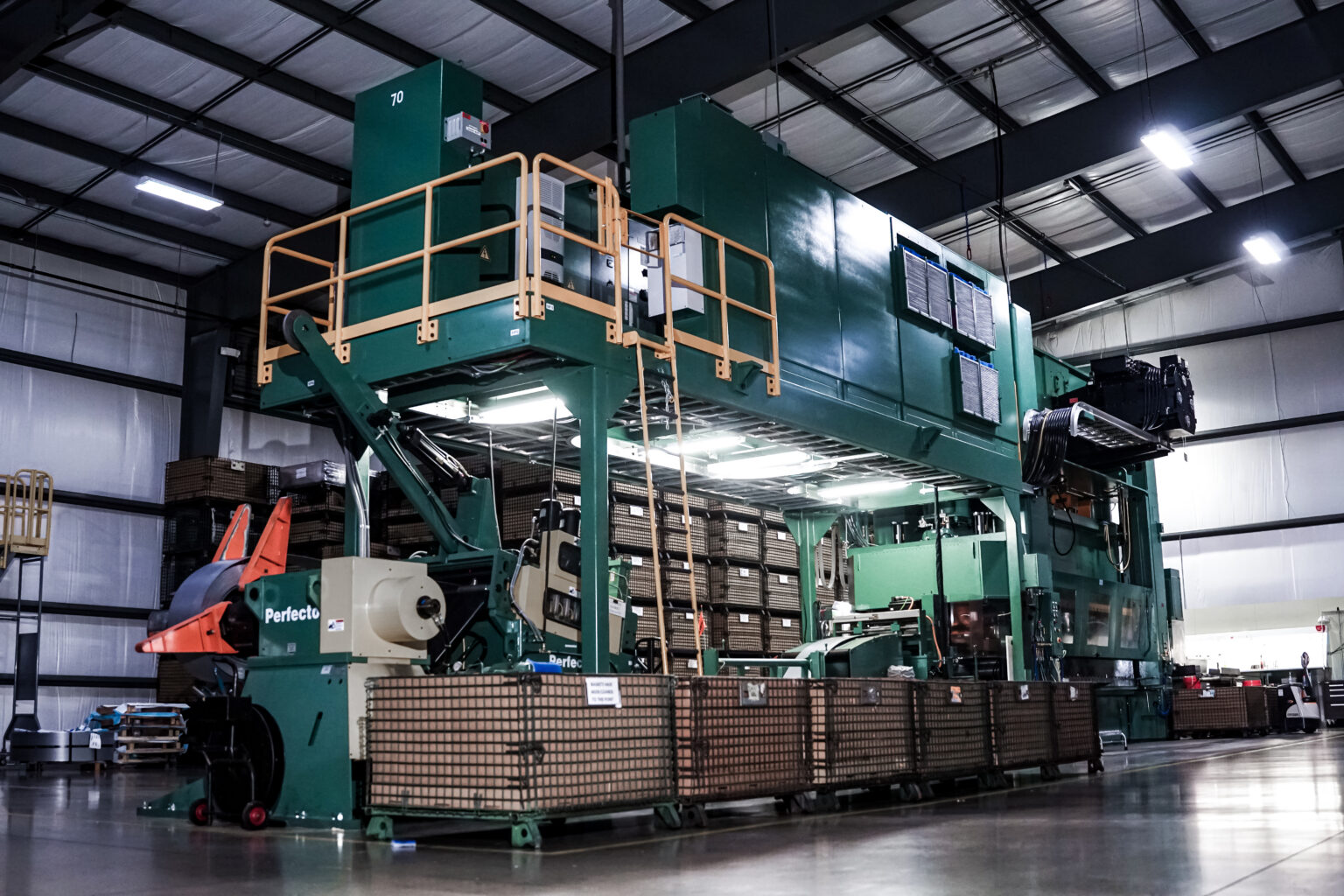

Equipment

Purpose-built for precision

Our equipment fleet is selected and maintained specifically for the demanding tolerances and production volumes our partners require.
